Woven Fabric Types: What Sewists and Makers Need to Know

Posted by BLG on 2026 Jul 26th

Woven Fabric Types: What Sewists and Makers Need to Know

Woven Fabric Types: What Sewists and Makers Need to Know

Sewist examining woven fabric swatches at home desk

A woven fabric is any textile made by interlacing two perpendicular yarn systems, the warp (lengthwise) and the weft (crosswise), and the family it belongs to predicts almost everything about how it will behave on your cutting table and in the finished piece. The six families you’ll encounter most are:

  • Plain weave — most stable, highest abrasion resistance, prone to wrinkling
  • Twill — diagonal rib, better drape and crease recovery (think denim, gabardine)
  • Satin — long floats, high luster and drape, low abrasion resistance
  • Dobby/Jacquard — loom-controlled figured patterns, from small geometric to large brocade
  • Pile — cut or looped surface yarns (velvet, corduroy, terry)
  • Leno/Crepe — open or crinkled structures for specialty drape and sheerness

Knowing the family before you buy saves you from choosing a gorgeous satin for a tote bag that will snag in a week, or a stiff canvas for a bias-cut dress that refuses to move.

Table of Contents

How are woven fabrics actually built?

Every woven textile starts with two yarn systems locked at right angles. The warp runs lengthwise on the loom; the weft (or filling) crosses it, one pick at a time. How often those yarns cross each other is called the interlacement ratio, written as a fraction like 1/1, 2/1, or 5/1.

That ratio is the single biggest lever on fabric behavior. A 1/1 plain weave locks every yarn at every crossing, producing maximum stability and abrasion resistance. A 5/1 satin skips four warp threads before binding, creating long floats that catch light and slide against each other — which is why satin drapes beautifully but snags on a rough fingernail. Britannica’s textile guide confirms that float length directly maps to drape, luster, and abrasion resistance across all three basic structures.

Two other specs matter when you’re reading a label or asking a supplier: EPI (ends per inch, the warp density) and PPI (picks per inch, the weft density). Higher counts generally mean a finer, smoother hand. Yarn twist and fiber type layer on top of that — a tightly twisted worsted yarn in a plain weave feels crisper than a loosely spun cotton in the same structure.

“Woven fabric performance depends on a mix of weave, fiber type, yarn twist, and finishing; no single factor alone determines end-use suitability.” — Nicola A. Redmore, Chapter 8: Woven Apparel Fabrics

One property beginners consistently miss: bias stretch. Woven cloth is stable on the straight grain but stretches diagonally at 45°. Couture designers exploit that for fluid silhouettes; beginners get distorted necklines. Stay-stitch curved edges immediately after cutting.

Pro Tip: Request EPI/PPI and GSM (grams per square meter) from your supplier before ordering yardage. Those two numbers, combined with fiber content, tell you more about real-world performance than any marketing description.

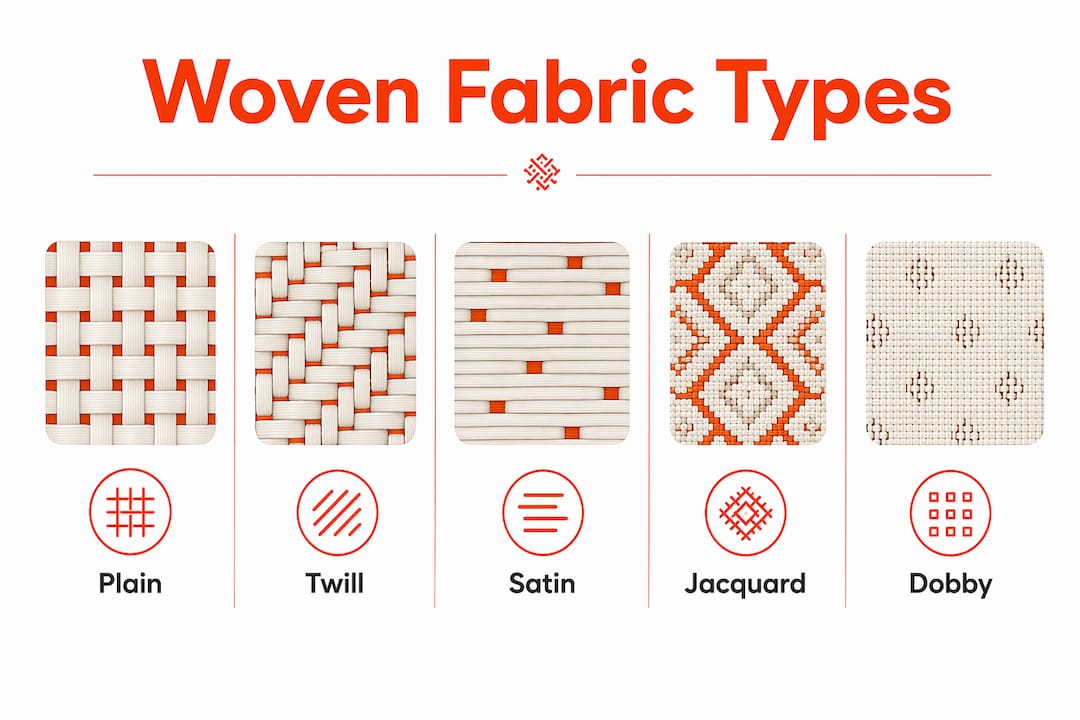

Infographic showing hierarchy of woven fabric types

**

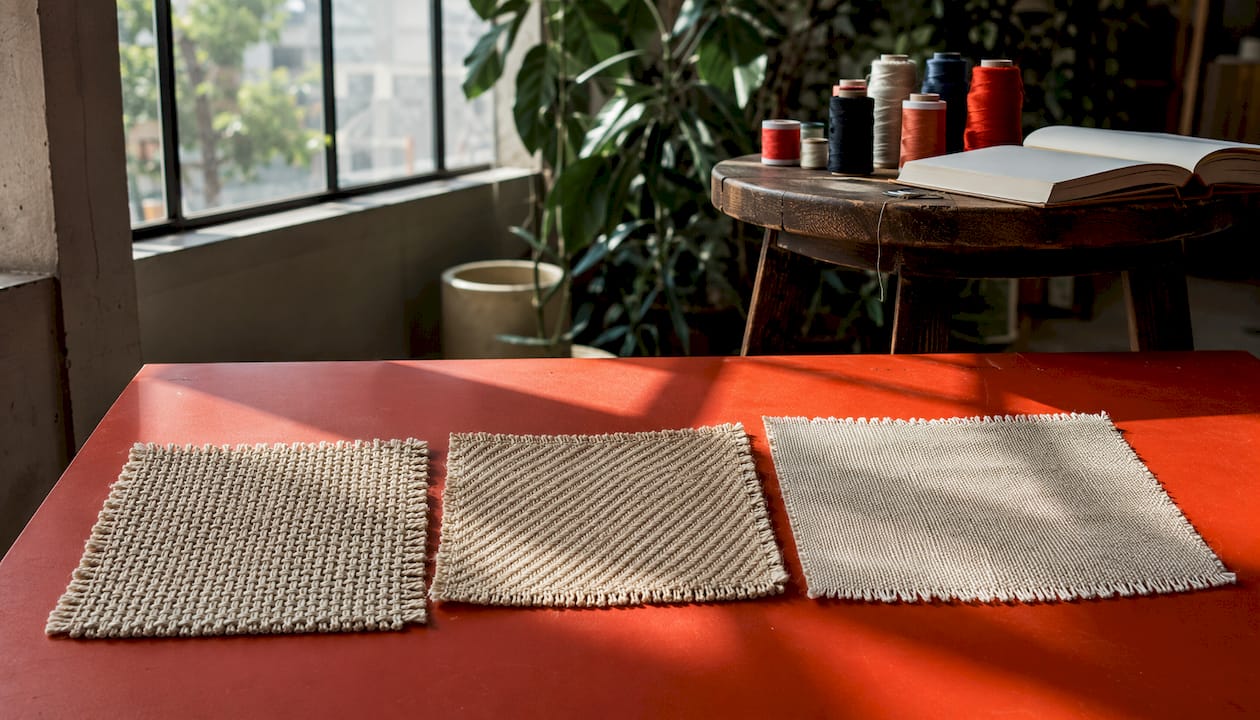

Close-up of plain, twill, and satin weave fabrics

How do the main weave families compare?

Plain, twill, and satin are the three foundational structures. Dobby, jacquard, pile, and leno build on them.

  • Plain weave locks every yarn at every crossing. Result: the most dimensionally stable structure, excellent for printing (no float distortion), and the highest abrasion resistance of the three basics. The trade-off is wrinkle tendency. High interlacement limits yarn recovery after compression, so plain-weave cotton shirts crease faster than a twill at the same weight. Best for: shirts, quilting, canvas bags, linings.
  • Twill creates a diagonal rib by shifting the interlacement point one thread over with each pick. That diagonal allows yarns to slide slightly, improving drape and crease recovery. Best for: trousers, jackets, denim jeans, twill weave projects that need structure with movement.
  • Satin pushes floats to their limit. In a 5-end satin, the interlacement percentage drops dramatically, producing the characteristic sheen and fluid drape. The downside is low abrasion resistance and a tendency to snag. Best for: eveningwear, linings, decorative pillows.
  • Dobby uses a mechanical attachment to control small groups of warp threads, creating geometric repeat patterns (waffle, honeycomb, small dots) woven into the structure.
  • Jacquard controls each warp thread individually, enabling large, complex figured designs — brocade, damask, tapestry. Jacquard is used for brocade, damask, and cloqué precisely because no other loom mechanism can handle that level of pattern complexity.
  • Pile weaves (velvet, corduroy, terry) add a third yarn system that forms loops or cut tufts above the ground cloth. Pile direction affects color depth; always cut pile fabrics with nap running the same direction.
  • Leno/crepe structures use twisted warp pairs or high-twist yarns to create open, gauze-like or crinkled surfaces that resist distortion despite low thread counts.
Weave Family Example Fabrics Best Project Types
Plain Poplin, muslin, chiffon, canvas Shirts, quilts, tote bags, linings
Twill Denim, gabardine, tweed Jeans, trousers, jackets, workwear
Satin Charmeuse, duchess satin Eveningwear, linings, decorative pillows
Dobby Waffle cloth, piqué Polos, towels, textured home decor
Jacquard Brocade, damask, tapestry Upholstery, formal wear, drapery
Pile Velvet, corduroy, terry Upholstery, robes, outerwear
Leno/Crepe Georgette, gauze, crepe Scarves, blouses, sheer curtains

Named woven fabrics: a quick-reference guide

Many commercial fabric names describe specific goods that differ by yarn weight, fiber, and finishing rather than a unique weave structure. Chiffon, for example, is a plain-weave sheer — the name tells you the weight and hand, not a different interlacement. Keeping that distinction clear prevents expensive selection mistakes.

Fabric Name Typical Fiber Weight/Hand Fray Tendency Best Uses
Denim Cotton Heavy, stiff Low–moderate Jeans, jackets, bags
Poplin Cotton, poly-cotton Light–medium, crisp Moderate Shirts, dresses, linings
Chiffon Silk, polyester Ultralight, sheer High Blouses, overlays, scarves
Linen Flax Medium–heavy, textured High Trousers, blazers, table linens
Canvas Cotton, linen Heavy, stiff Low Bags, upholstery, outdoor gear
Brocade Silk, poly, metallic Medium–heavy, stiff Moderate–high Formal wear, upholstery, drapery
Velvet Silk, cotton, poly Medium–heavy, soft Low (pile) Upholstery, eveningwear, cushions
Muslin Cotton Light–medium, plain Moderate Toiles, backdrops, craft
Gabardine Wool, poly Medium, smooth Low Trousers, suits, coats
Charmeuse Silk, polyester Light, fluid High Blouses, lingerie, linings

Sewing notes by fabric group:

  • Lightweight sheers (chiffon, charmeuse): use a size 60/8 or 70/10 sharp needle, French seams or rolled hems, and add at least ⅝" seam allowance to account for slippage.
  • Medium-weight wovens (poplin, linen, gabardine): standard 80/12 universal needle, serged or pinked seams, ⅝" allowance is fine.
  • Heavyweights (canvas, denim, brocade): 90/14 or 100/16 denim needle, flat-felled or bound seams, reduce presser-foot pressure to avoid feed-dog drag.
  • Pile fabrics (velvet, corduroy): cut all pieces in the same nap direction, use a walking foot, and avoid pressing directly on the pile surface.

For more woven fabric examples suited to craft projects, Fabric-fabric’s blog covers practical project pairings in detail.

How do you choose the right woven fabric for your project?

The right fabric starts with the project’s functional demands, not the color. Work through these questions before you order:

For apparel:

  • Does the design require drape or structure? Bias-cut silhouettes need satin or charmeuse; tailored jackets need gabardine or twill.
  • Will it be washed frequently? Choose cotton or poly-cotton plain weaves over silk satins.
  • Does the pattern require matching? Add 15–20% extra yardage for plaids and stripes.

For crafts:

  • Does the piece need to hold its shape? Plain weave (canvas, muslin) is more stable than satin or charmeuse for bags and structured items.
  • Check the knit vs. woven difference if you’re unsure whether your pattern calls for stretch.

For upholstery:

  • Prioritize rub count (Martindale or Wyzenbeek test results). Upholstery fabrics should exceed 15,000 double rubs for light use, 30,000+ for heavy use.
  • Heavier jacquards and canvas weaves outperform satins in this application.
  • Ask for GSM and fiber content; synthetic blends often outperform natural fibers for abrasion.

Woven fabric performance depends on weave, fiber, yarn twist, and finishing together. No single spec tells the whole story, which is why swatches matter.

Pro Tip: When a swatch arrives, test it in the light you’ll actually use it in (natural vs. artificial), check drape by holding a corner and letting it fall, and run a fingernail across the surface to check snag resistance. Wet a corner and press it to check for color bleed before committing to yardage. The swatch selection process at Fabric-fabric walks through exactly this.

Maker testing drape and stretch of fabric swatch

Why do woven fabrics fray, and how do you stop it?

Woven edges fray because the cut severs the interlacement that holds warp and weft yarns together. Unlike knit fabrics, woven fabrics have no inherent edge stability — the moment you cut, the clock starts. Finish edges immediately after cutting, before the piece goes back on the shelf.

Edge finishing options (in order of durability):

  1. Serge/overlock — the fastest and most durable option for most fabrics; trims and encases the edge in one pass.
  2. French seam — encloses the raw edge inside the seam; ideal for sheers and lightweight fabrics where a serger would show through.
  3. Bound seam (Hong Kong finish) — wraps the edge in bias tape; excellent for unlined jackets and medium-to-heavy fabrics.
  4. Zigzag stitch — a quick machine option when a serger isn’t available; set stitch width to 3–4mm.
  5. Pinking shears — slows fraying on tightly woven fabrics; not sufficient alone on loose weaves or sheers.

Care by fiber family:

  • Cotton wovens: machine wash warm, tumble dry medium; iron on the cotton setting while slightly damp. See Fabric-fabric’s fabric care guide for retailer-level detail.
  • Silk and charmeuse: hand wash in cool water with a gentle detergent, or dry clean; press on a low silk setting with a press cloth.
  • Wool/gabardine: dry clean or hand wash cold; lay flat to dry; steam press on the reverse.
  • Polyester blends: machine wash warm, low-heat dry; minimal ironing needed.
  • Linen: machine wash warm; expect 3–5% initial shrinkage; iron damp on high heat for a crisp finish.

Quick troubleshooting:

  • Shrinkage: pre-wash all natural-fiber wovens before cutting. Cotton and linen can shrink 3–5% on the first wash.
  • Seam slippage: common in loosely woven satins and sheers; increase seam allowance to ¾" and use a smaller stitch length (2.0–2.5mm).
  • Pile flattening: steam velvet from the reverse side over a needle board or a loop-pile towel; never press directly on the pile.

What makes jacquard and dobby different from printed fabric?

The core difference is structural. A printed fabric applies color to the surface; a jacquard or dobby weaves the pattern into the cloth itself using controlled warp-thread selection or extra yarn systems. Woven-in designs do not fade or wear off because the design is structural, not a coating.

  • Dobby loom: controls small groups of warp threads to create geometric repeats — waffle, honeycomb, small dots, and simple stripes. Pattern repeat size is limited by the number of harnesses.
  • Jacquard loom: controls each warp thread individually, enabling unlimited pattern complexity. Brocade uses supplementary weft yarns to create raised motifs; damask reverses warp and weft satin floats to create a two-tone pattern on a single-color cloth; cloqué uses differential shrinkage to create a blistered surface.

When is the premium worth it? For upholstery and drapery that will see years of use, a woven jacquard pattern outlasts any printed equivalent. For a garment worn a handful of times, a high-quality print is often the smarter spend.

Pro Tip: Hold a jacquard up to the light. If the pattern is truly woven, you’ll see it on both faces (even if one side is less defined). A printed fabric will show a faint ghost or be completely blank on the reverse.

Quick-reference: best woven fabrics by project

Project Recommended Fabrics Why
Dress shirts Poplin, broadcloth, chambray Crisp hand, good printability, easy care
Dresses (draped) Charmeuse, chiffon, crepe Fluid drape, bias-friendly
Jeans/trousers Denim, gabardine, twill Diagonal rib improves drape and crease recovery
Tote bags Canvas, duck cloth Heavy plain weave, low fray, holds shape
Upholstery Jacquard, velvet, canvas High rub count, pattern durability
Curtains/drapery Linen, brocade, sheer voile Weight and opacity options across the range
Quilting Quilting cotton, muslin Stable plain weave, consistent shrinkage
Craft projects Muslin, canvas, cotton twill Easy to cut, stable, takes dye and paint well

When you’re genuinely unsure, order a 10×10" swatch and test drape, edge behavior, and color fastness before committing to yardage. That one step prevents most costly mistakes.

A brief history of woven textiles

Weaving is among the oldest human technologies. Archaeological evidence places simple loom weaving in the Neolithic period, roughly 10,000–7,000 BCE, with fragments of plain-weave linen recovered from sites in the ancient Near East. The backstrap loom, still used across Central America and Southeast Asia, predates the frame loom by thousands of years.

Silk weaving in China dates to at least 3,000 BCE, and the Silk Road carried woven textiles as one of the most valuable traded commodities in the ancient world. In pre-Columbian Mesoamerica and the Andes, weavers developed complex supplementary-weft techniques that rivaled anything produced in the Old World. Andean textiles, in particular, used fiber, color, and pattern as a recording system, encoding social and ceremonial information into cloth.

The Jacquard loom, introduced in France in 1804 by Joseph Marie Jacquard, mechanized the control of individual warp threads using punched cards — a concept that directly influenced early computing. That single invention made complex figured weaves commercially viable and democratized brocade and damask production. The Industrial Revolution then shifted most plain and twill weaving to power looms, dropping fabric costs dramatically and making woven cloth accessible to mass markets for the first time.

Key Takeaways

Weave family is the single most predictive variable when selecting any woven textile: it determines drape, luster, abrasion resistance, and how the fabric behaves under a needle.

Point Details
Match weave to project demands Plain weave for stability and bags; twill for drape and trousers; satin for eveningwear and linings.
Float length drives the drape/durability trade-off Longer floats mean more luster and drape but lower abrasion resistance and snag risk.
Stabilize cut edges immediately Woven fabrics fray from the moment of cutting; serge, French seam, or bind before setting the piece aside.
Always test with a swatch Check drape, color fastness, and edge behavior on a sample before ordering full yardage.
Fabric-fabric for samples and yardage Browse home decor and upholstery fabrics at Fabric-fabric to order swatches and confirm specs before committing.

The part most guides skip

Most fabric guides spend their energy on definitions and skip the part that actually costs people money: the gap between what a fabric looks like on screen and what it does in your hands.

Satin is the classic example. Every beginner wants it because it photographs beautifully. What they don’t expect is that a 5-end satin in polyester will snag on a rough thumbnail, slip under the presser foot, and fray aggressively at every cut edge. The weave structure is telling you all of that before you buy — if you know how to read it. Long floats equal low abrasion resistance. Low interlacement equals edge instability. That’s not a flaw; it’s physics. The fabric is doing exactly what its structure promises.

The same logic applies to the plain-weave wrinkle problem. Canvas and poplin are often sold as “durable” without the caveat that high interlacement limits yarn recovery, so they crease harder than a twill at the same weight. For a tailored jacket, that matters. For a tote bag, it doesn’t.

The practical takeaway: learn to read the weave before you fall in love with the color. A swatch in your hands for 60 seconds tells you more than any product description.
